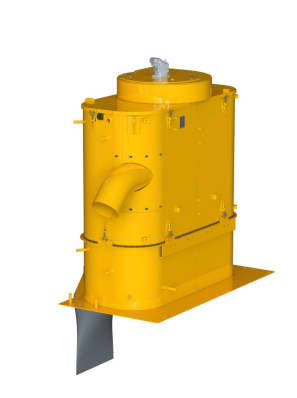

The ILMEG XR 250 offers the perfect balance between size and power for rotary drilling dust collection. Built for mid to large-scale operations, it features four high-performance filters and an upgraded oil pressure requirement of 140 bar. With a suction capacity of 2.1 m³/s (4500 CFM) and ILMEG’s proven reversed-air filter cleaning system, the XR 250 is engineered for continuous operation, minimal downtime, and excellent air quality. It’s an ideal solution for projects requiring more suction power without the size and oil demands of the XR 300.
| Max recommended hole diameter | 300 mm (12″) |
| Hose dimensions | 254 mm (10″) |
| Hydraulic supply | 75 l/min, 140 bar |
| Filter cleaning | Pulse jet (sequential during operation) |
| Filters | 4 pcs, M-class, 32 m² total area |
| Pneumatic air supply | 7 bar, 150 l/min (100 PSI, 5 CFM) |
| Control voltage | 24 VDC |
| Dimensions (WxDxH) | 1830 x 1360 x 2055 |
| Weight | 600 kg (1300 lbs) |
