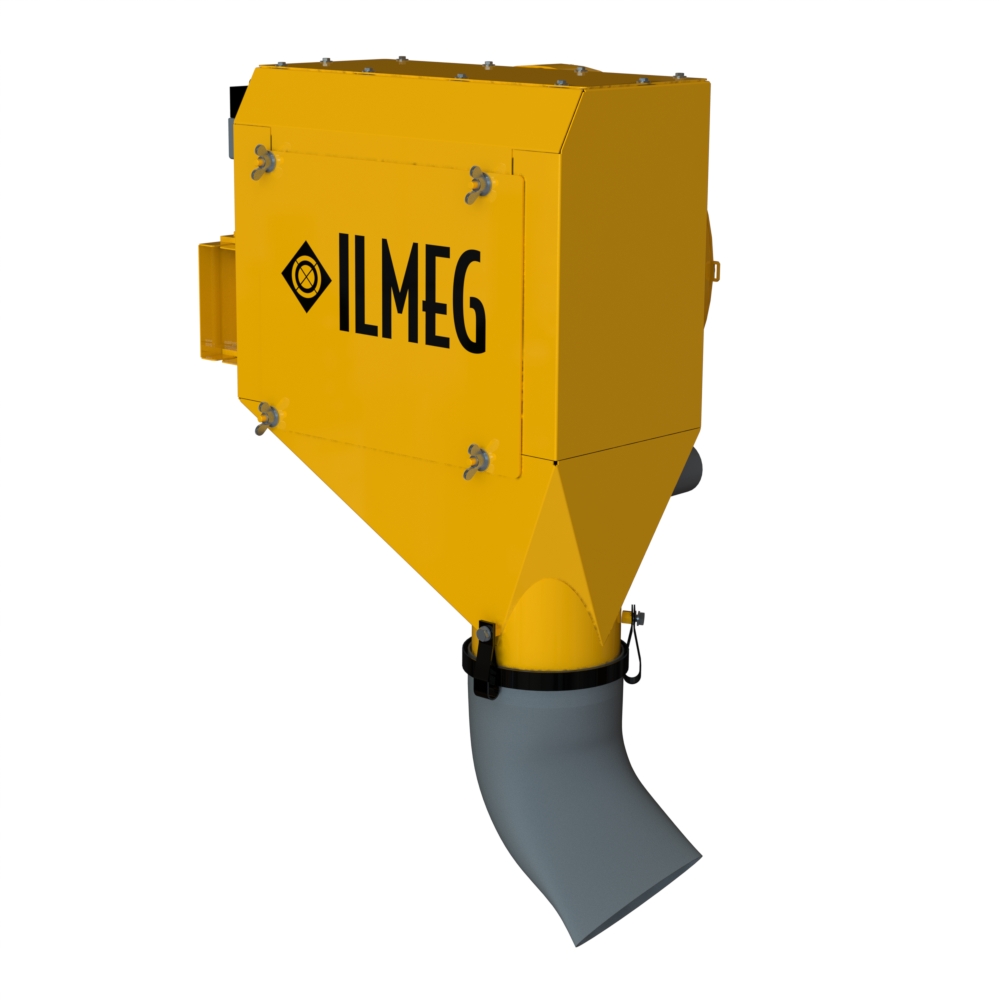

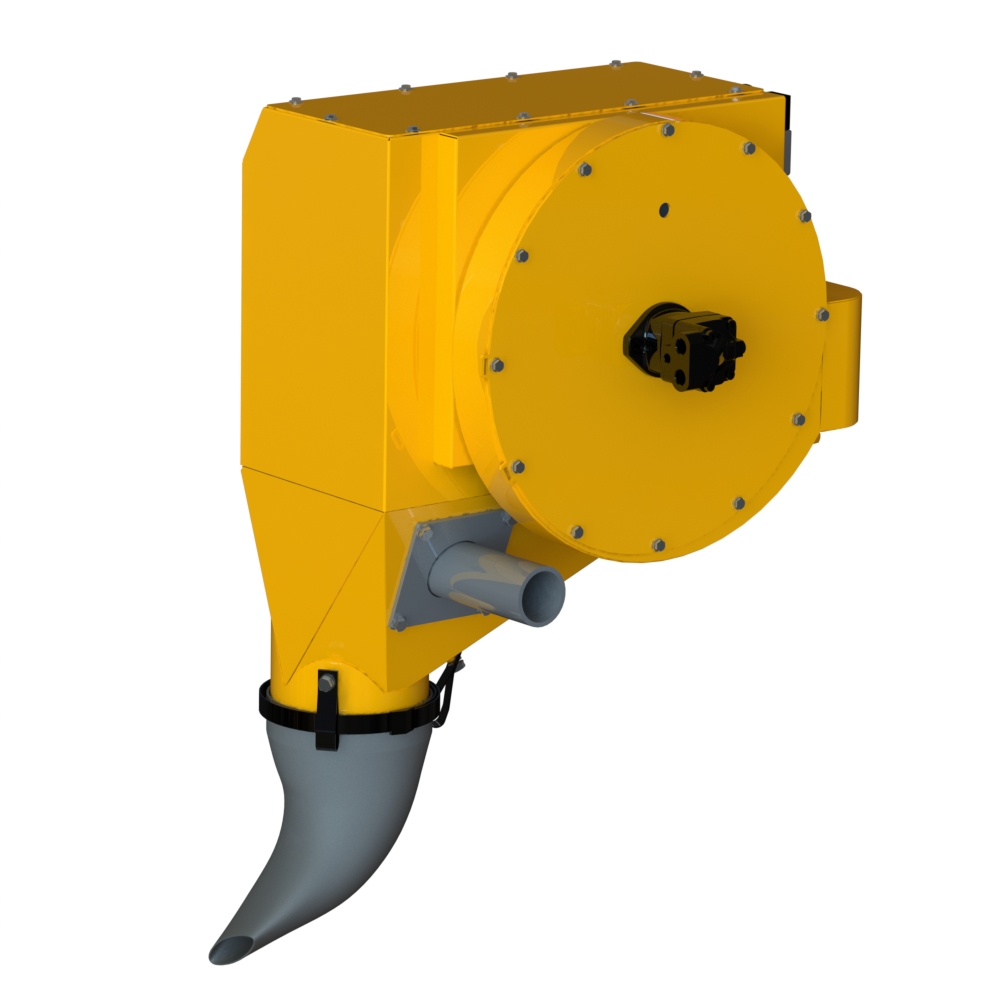

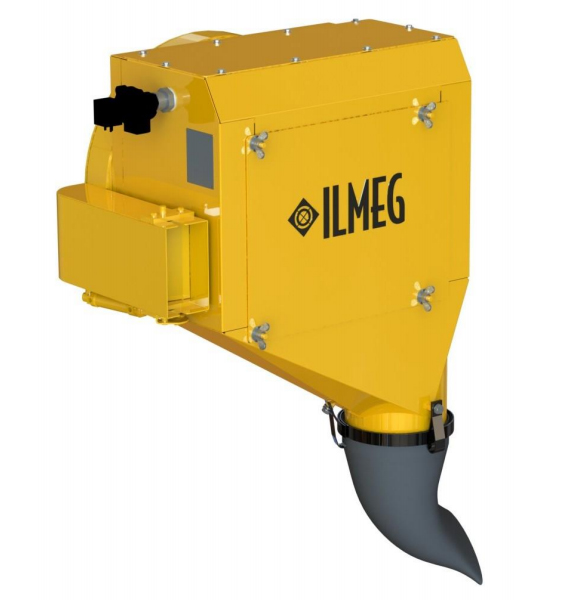

The ILMEG H 300 Compact is a lightweight, hydraulically driven dust collector developed for efficient dust suppression in small-diameter rock drilling applications. Ideal for blast hole drilling with top hammer rock drills, it improves air quality and enhances operator safety while maintaining high drilling productivity.
Compact & Lightweight Design
Weighing only 80 kg, the H 300 is perfectly suited for mobile rigs and operations where space and weight are limited.
Effective Dust Collection
Designed for drill holes up to 51 mm, the H 300 offers reliable suction performance for smaller rock drilling tasks.
Reverse-Air Filter Cleaning
The system uses reversed air pulses to clean the filters, ensuring longer service intervals and consistent performance during drilling.
Low Oil Flow Requirement
With only 25 l/min oil flow at 200 bar, the H 300 operates efficiently, even on smaller hydraulic systems.
Optional Automation
Available with an automatic filter cleaning control system and pre-separator to further optimize filtration and minimize maintenance.
| Max recommended hole diameter | 51 mm (2″) |
| Hose dimensions | 76 mm (3″), recommended max 20 m (60′) |
| Hydraulic supply | 25 l/min, 150 bar |
| Filter cleaning | Pulse jet |
| Filters | 8 pcs, M-class, 3.2 m² total area |
| Pneumatic air supply | 7 bar (100 PSI) |
| Control voltage | 24 VDC |
| Dimensions (WxDxH) | 705 x 550 x 780 mm |
| Weight | 80 kg (175 lbs) |
